Simulation and Control Technologies offers many high-fidelity control loading solutions from Level D certification to mid-fidelity training environments. SCT will customize a solution for any training environment. Each Electro-Load actuator is designed and manufactured to achieve the highest level of fidelity.  Our Model 2657 actuator produces enough torque to simulate any heavy transport aircraft and is dynamic enough to simulate cyclic response in helicopter applications. Our systems are designed to support incremental updates to increase product life cycle. Please contact SCT for Legacy model actuator support including 2020, 2050, 2145 and 2334.

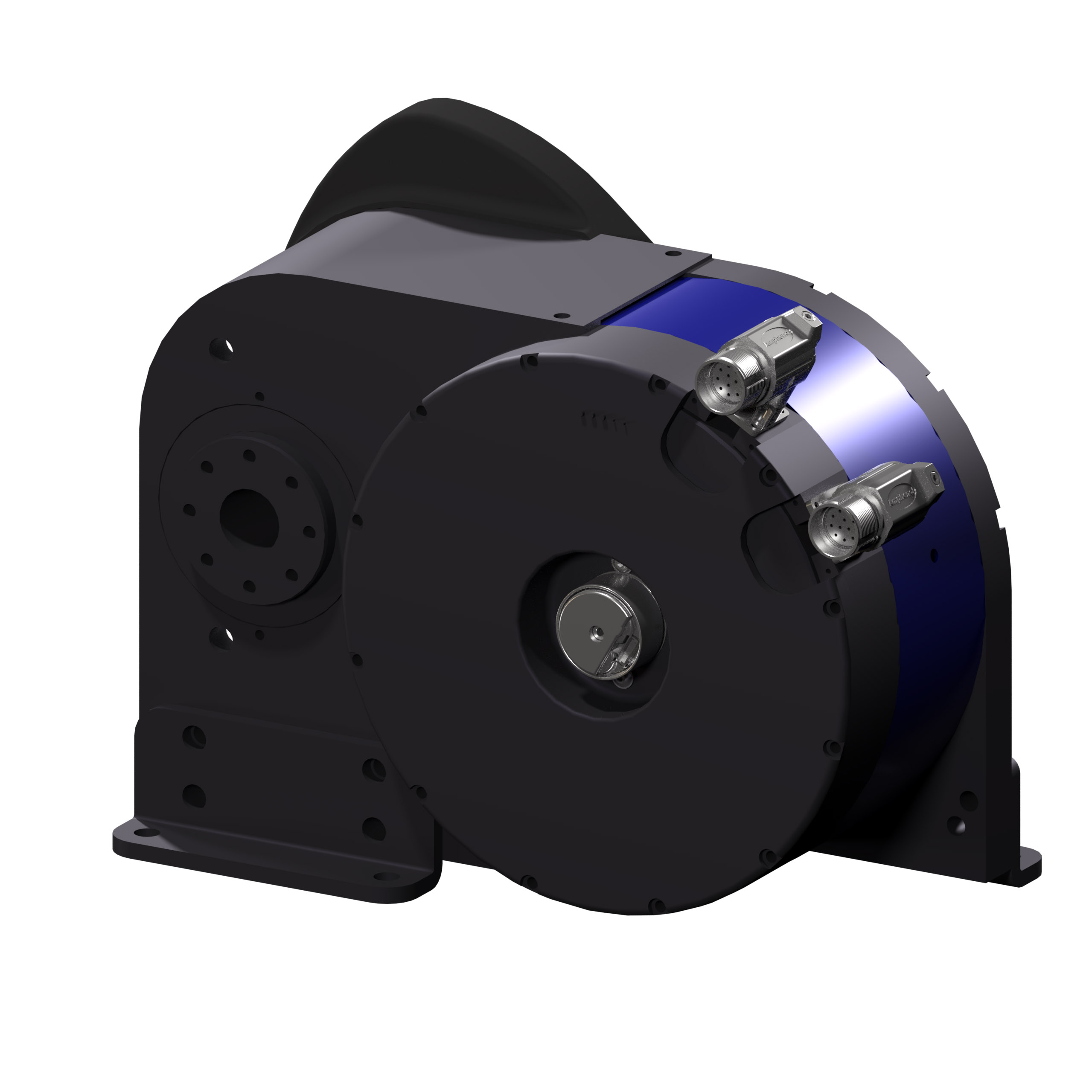

2657 - 220/110 G2 High Fidelity Actuators

SCT's electric rotary actuators are designed to provide the highest level of fidelity for high precision and/or high force applications.

MODEL 2657-220 G2

Takeoff Point (in.) Stroke (in.) Continuous Force (lb.) Peak Force (lb.) Speed (No Load, deg./sec.)
2.55 Inch ±1.50 Inch 1035 LBS 2070 LBS 840 deg/sec
3.40 Inch ±2.00 Inch 776 LBS 1552 LBS 840 deg/sec
3.83 Inch ±2.25 Inch 689 LBS 1378 LBS 840 deg/sec

MODEL 2657-110 G2

Takeoff Point (in.) Stroke (in.) Continuous Force (lb.) Peak Force (lb.) Speed (No Load, deg./sec.)
2.55 Inch ±1.50 Inch 518 LBS 1036 LBS 1680 deg/sec
3.40 Inch ±2.00 Inch 388 LBS 776 LBS 1680 deg/sec
3.83 Inch ±2.25 Inch 345 LBS 690 LBS 1680 deg/sec

Fill out the form below and we'll automatically send you our full spec sheet on our High Fidelity 2657-220 Actuator to your e-mail address.

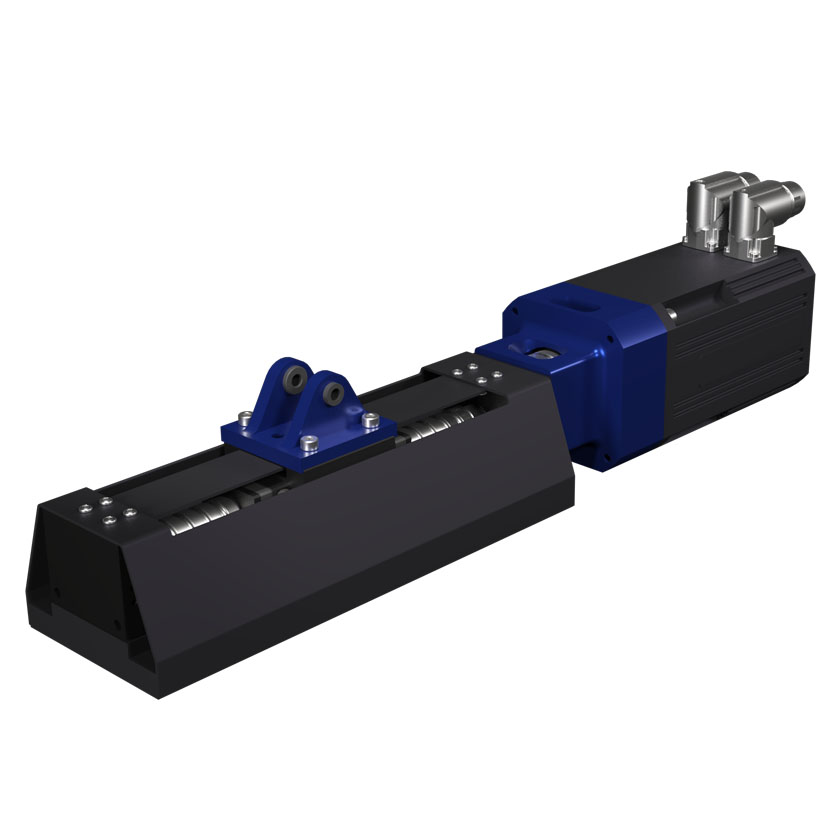

2634 - 0410/0210 G2 High Fidelity Actuators

SCT's electric linear actuators are designed to provide high-fidelity feel for space-constrained applications

MODEL 2634-0410 G2

Stroke (in.) Continuous Force (lb.) Peak Force (lb.) Speed (No Load, in/sec.)
±2.30 592 1184 16

MODEL 2634-0210 G2

Stroke (in.) Continuous Force (lb.) Peak Force (lb.) Speed (No Load, in/sec.)
±1.00 287 574 24

Fill out the form below and we'll automatically send you our full spec sheet on our 2634 - 0410/0210 G2 High Fidelity Actuator to your e-mail address.

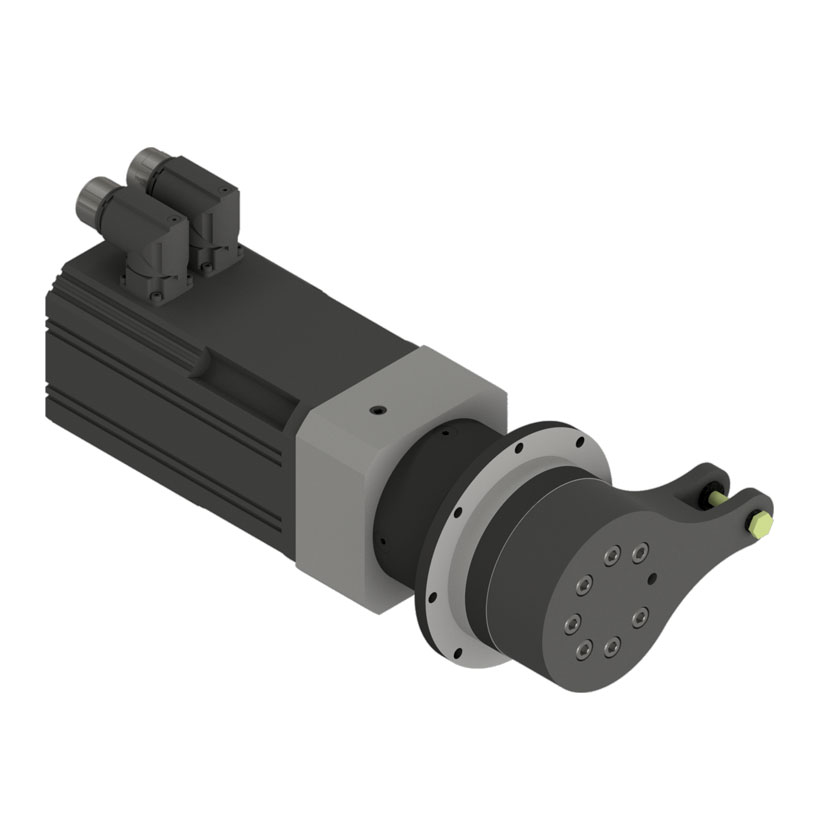

2604-25 Mid Fidelity Actuators

SCT's electric rotary actuators are designed to provide mid-fidelity responses for space-constrained or low force applications

Takeoff Point (in.) Stroke (in.) Continuous Force (lb.) Peak Force (lb.) Speed (No Load, deg./sec.)
2.5 ±1.25 372 744 720
3.5 ±1.75 266 532 720
4.0 ±2.20 233 466 720

Fill out the form below and we'll automatically send you our full spec sheet on our Mid Fidelity 2604-25 Actuator to your e-mail address.


2604-10 Mid Fidelity Actuators

SCT's electric rotary actuators are designed to provide mid-fidelity responses for space-constrained or low force applications

Takeoff Point (in.) Stroke (in.) Continuous Force (lb.) Peak Force (lb.) Speed (No Load, deg./sec.)
2.5 ±1.25 149 298 1800
3.5 ±1.75 106 212 1800
4.0 ±2.20 93 186 1800

Fill out the form below and we'll automatically send you our full spec sheet on our Mid Fidelity 2604-10 Actuator to your e-mail address.

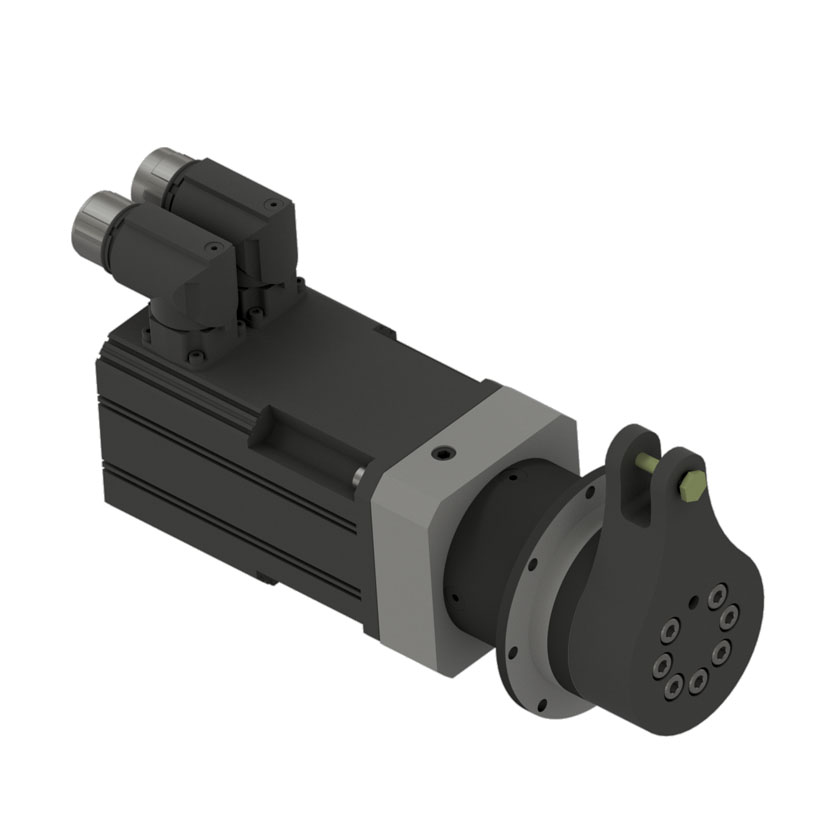

2602-25 Mid Fidelity Actuators

SCT's electric rotary actuators are designed to provide mid-fidelity responses for space-constrained or low force applications

Takeoff Point (in.) Stroke (in.) Continuous Force (lb.) Peak Force (lb.) Speed (No Load, deg./sec.)
2.5 ±1.25 177 354 720
3.5 ±1.75 126 252 720
4.0 ±2.20 111 222 720

Fill out the form below and we'll automatically send you our full spec sheet on our High Fidelity 2602-25 Actuator to your e-mail address.


2602-10 Mid Fidelity Actuators

SCT's electric rotary actuators are designed to provide mid-fidelity responses for space-constrained or low force applications

Takeoff Point (in.) Stroke (in.) Continuous Force (lb.) Peak Force (lb.) Speed (No Load, deg./sec.)
2.5 ±1.25 71 142 1800
3.5 ±1.75 51 102 1800
4.0 ±2.20 44 88 1800

Fill out the form below and we'll automatically send you our full spec sheet on our High Fidelity 2602-10 Actuator to your e-mail address.
