3 DOF Motion Systems

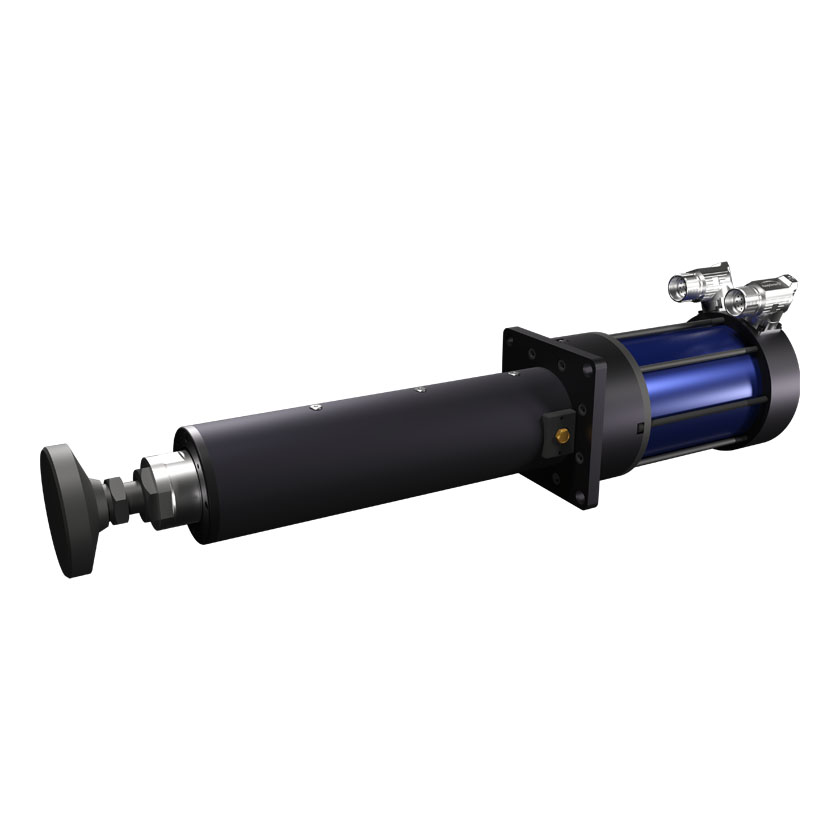

SCT is an industry leader in the design, development and manufacturing of unique motion systems for a variety of applications from single axis seat shakers to multi-axis low clearance solutions. Each system is driven by a motion application specific line of SCT electric actuators using EtherCAT I/O technology. Please contact us with your unique motion requirements.
The standard product listed below is designed to accommodate lower payload applications with reduced stroke at a low cost. All SCT products may be customized for your application.

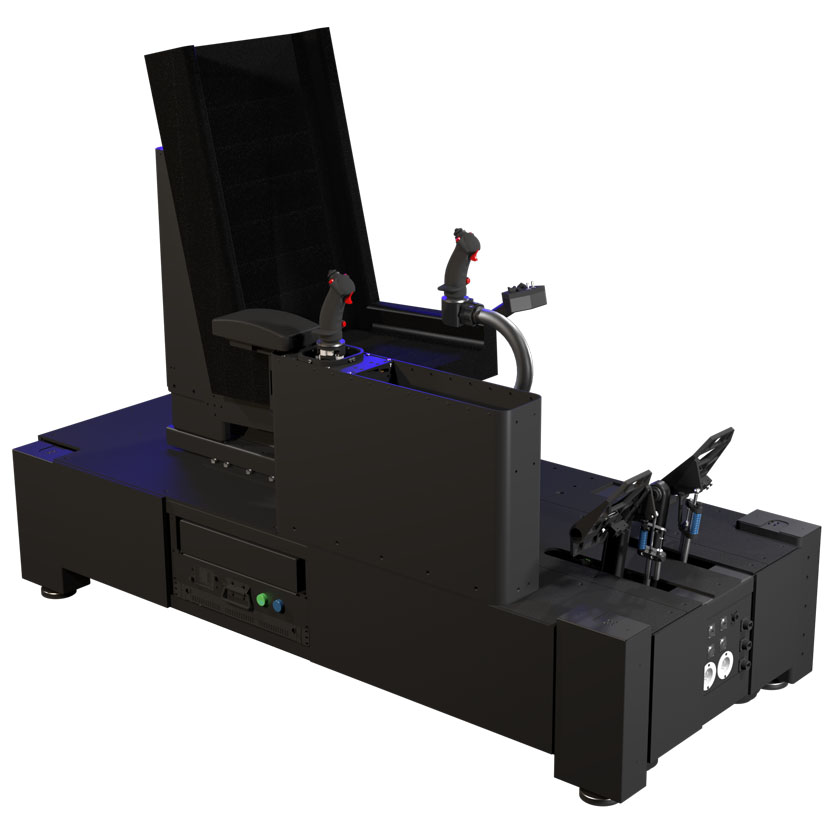

SCT 1600/4 3DOF 726 KG
| Features | 850 lbs. / 385 kg Max Lift Capacity/ Actuator |
|---|---|
| Power Requirement | 120VAC 60Hz 20 Amps |
| Maximum Vertical Lift | 4 Inches |
| Maximum Velocity | 6 in/sec |
| Maximum Acceleration | +/- 0.5 Gs |
| Frequency Range | 0-20 Hz |
| Operating T° Rage/Humidity | 0-40° C / 0-95% (No Dew) |
Fill out the form below and we'll automatically send you our full spec sheet on our SCT 1600/4 3DOF 726 KG to your e-mail address.
