Simulation and Control Technologies offers many high-fidelity control loading solutions from Level D certification to mid-fidelity training environments. SCT will customize a solution for any training environment. Each Electro-Load actuator is designed and manufactured to achieve the highest level of fidelity.  Our Model 2657 actuator produces enough torque to simulate any heavy transport aircraft and is dynamic enough to simulate cyclic response in helicopter applications. Our systems are designed to support incremental updates to increase product life cycle. Please contact SCT for Legacy model actuator support including 2020, 2050, 2145 and 2334.

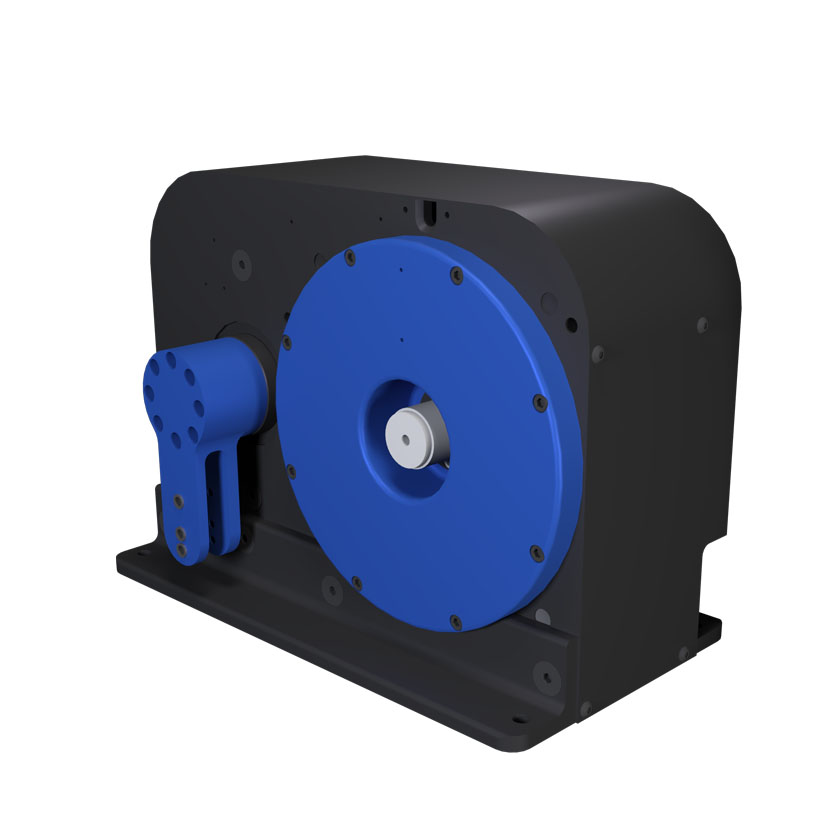

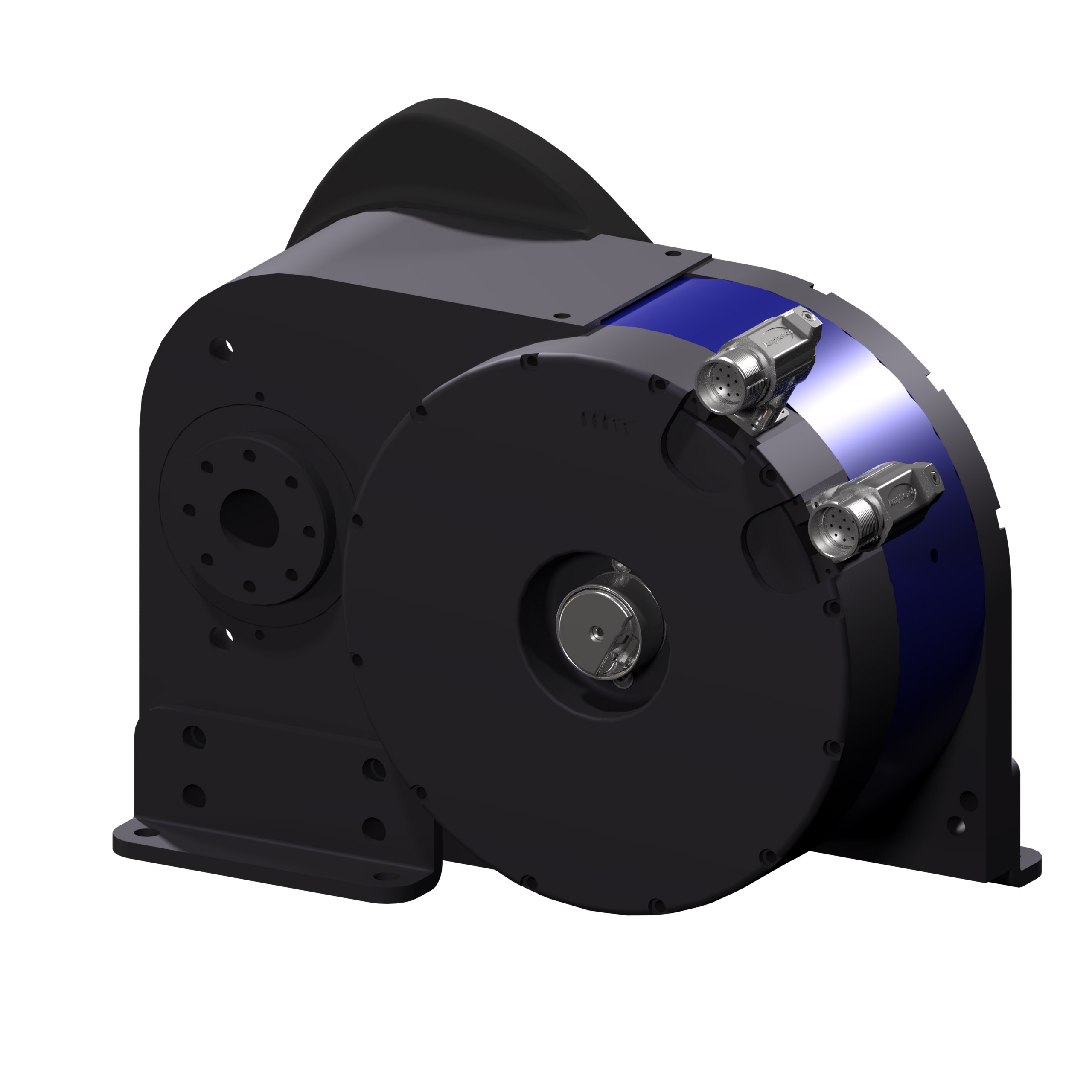

2657-220/110 High Fidelity Actuator

SCT's electric rotary actuators are designed to provide the highest level of fidelity for high precision and/or high force applications The figures given below are for the 220 and 110 models

Takeoff Point (in.) Stroke (in.) Continuous Force (lb.) Peak Force (lb.) Speed (No Load, deg./sec.)
2.55 ±1.5/lbs 1035 / 518 2070 / 1036 840 / 1680
3.40 ±2.0 776 / 388 1552 / 776 840 / 1680
3.83 ±2.25 689 / 345 1378 / 690 840 / 1680

Fill out the form below and we'll automatically send you our full spec sheet on our High Fidelity 2657-220 Actuator to your e-mail address.

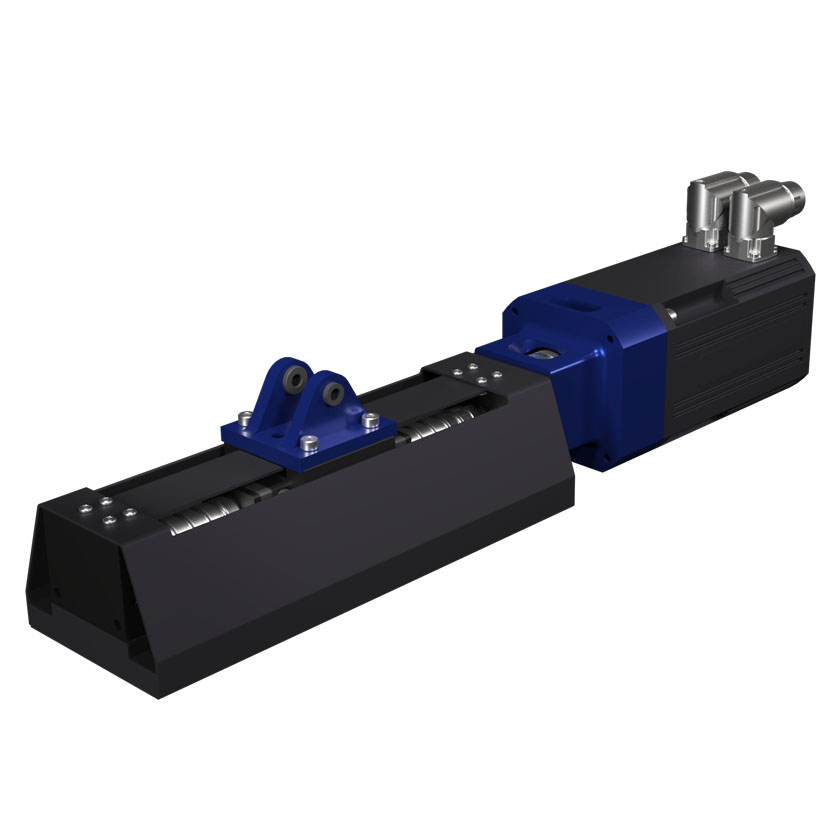

2634 High-Fidelity Actuators

SCT's electric linear actuators are designed to provide high-fidelity feel for space-constrained applications

Stroke (in.) Continuous Force (lb.) Peak Force (lb.) Speed (No Load, deg./sec.)
±2.3/lbs 592 1184 16

Fill out the form below and we'll automatically send you our full spec sheet on our 2634 High Fidelity Actuator to your e-mail address.

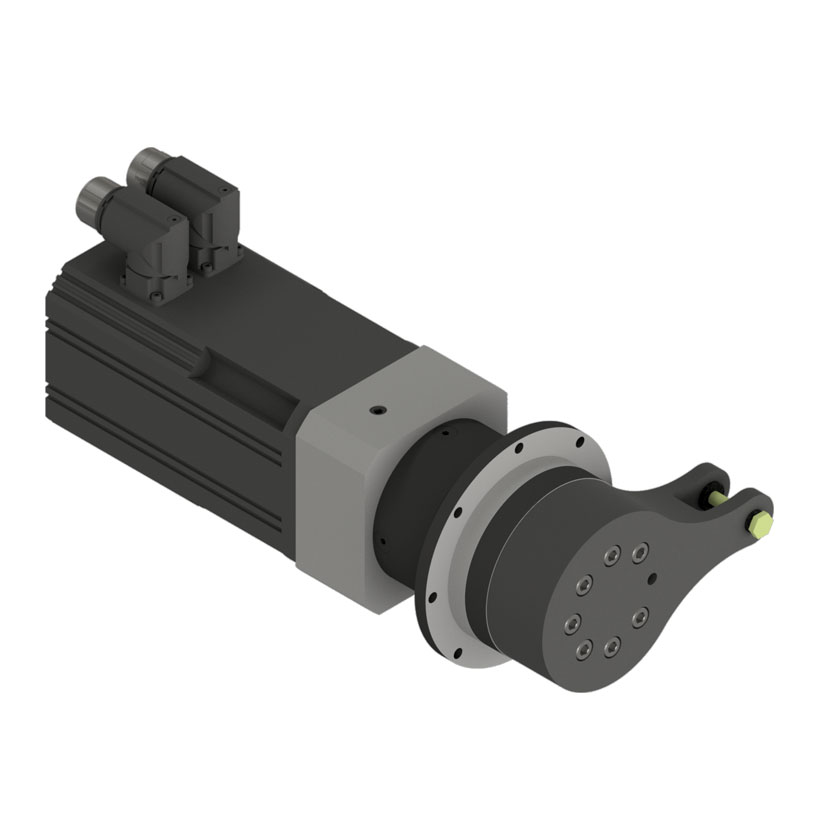

2604-25 Mid-Fidelity Actuators

SCT's electric rotary actuators are designed to provide mid-fidelity responses for space-constrained or low force applications

Takeoff Point (in.) Stroke (in.) Continuous Force (lb.) Peak Force (lb.) Speed (No Load, deg./sec.)
2.5 ±1.25/lbs 372 744 720
3.5 ±1.75 266 532 720
4.0 ±2.20 233 466 720

Fill out the form below and we'll automatically send you our full spec sheet on our Mid Fidelity 2604-25 Actuator to your e-mail address.


2604-10 Mid-Fidelity Actuators

SCT's electric rotary actuators are designed to provide mid-fidelity responses for space-constrained or low force applications

Takeoff Point (in.) Stroke (in.) Continuous Force (lb.) Peak Force (lb.) Speed (No Load, deg./sec.)
2.5 ±1.25/lbs 149 298 1800
3.5 ±1.75 106 212 1800
4.0 ±2.20 93 186 1800

Fill out the form below and we'll automatically send you our full spec sheet on our Mid Fidelity 2604-10 Actuator to your e-mail address.

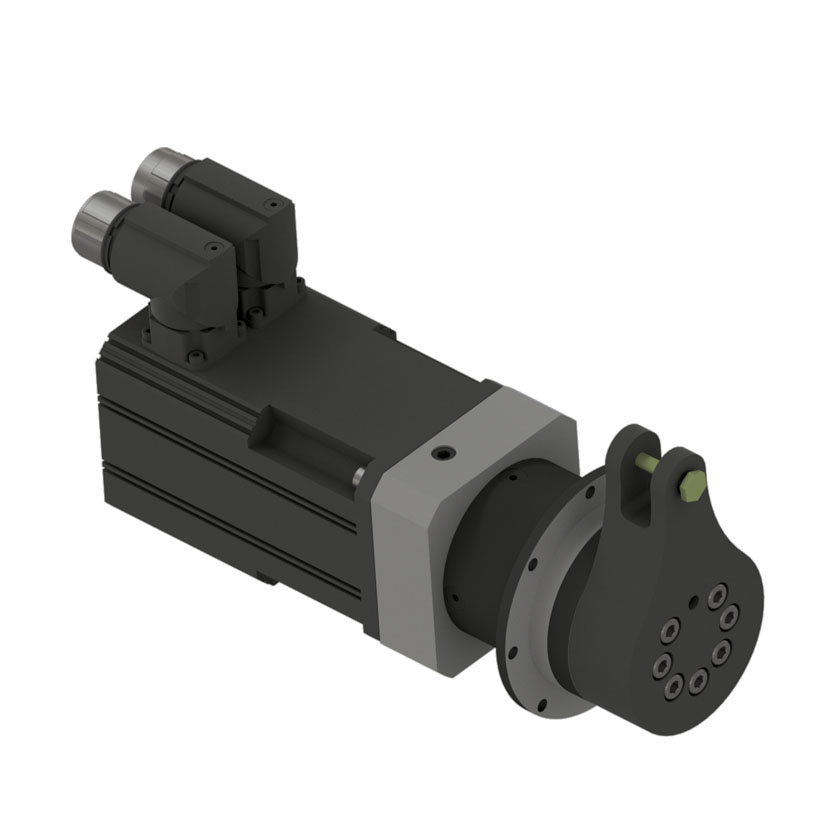

2602-25 Mid-Fidelity Actuators

SCT's electric rotary actuators are designed to provide mid-fidelity responses for space-constrained or low force applications

Takeoff Point (in.) Stroke (in.) Continuous Force (lb.) Peak Force (lb.) Speed (No Load, deg./sec.)
2.5 ±1.25/lbs 177 354 720
3.5 ±1.75 126 252 720
4.0 ±2.20 111 222 720

Fill out the form below and we'll automatically send you our full spec sheet on our High Fidelity 2602-25 Actuator to your e-mail address.


2602-10 Mid-Fidelity Actuators

SCT's electric rotary actuators are designed to provide mid-fidelity responses for space-constrained or low force applications

Takeoff Point (in.) Stroke (in.) Continuous Force (lb.) Peak Force (lb.) Speed (No Load, deg./sec.)
2.5 ±1.25/lbs 71 142 1800
3.5 ±1.75 51 102 1800
4.0 ±2.20 44 88 1800

Fill out the form below and we'll automatically send you our full spec sheet on our High Fidelity 2602-10 Actuator to your e-mail address.
