Modular Control Assemblies
SCT offers a complete line of modular control loading assemblies, which include Column/Yoke, Cyclic Stick, Side Stick, Throttles and Collective assemblies.

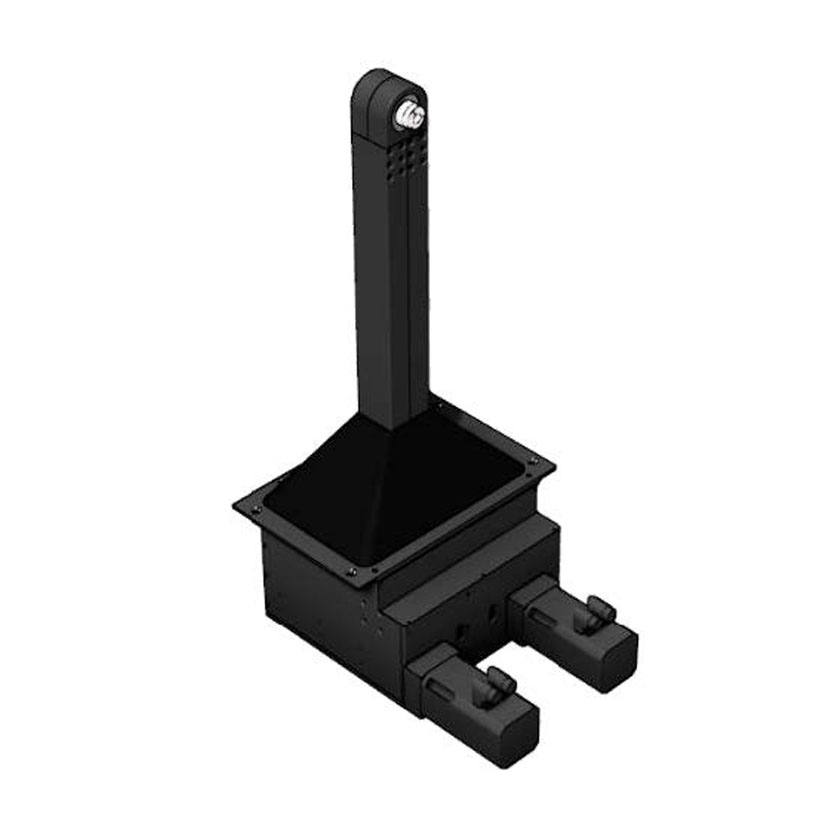

Modular Column/Yoke Assembly
The figures given below are for the -1 and -2 models
Modular Column/Yoke Assembly - 1 Model
| Pitch Control Travel | Pitch Continuous Force | Pitch Max Force (For :30 Sec) | Pitch Max Speed (Unloaded) |
|---|---|---|---|
| ±15 Degrees | 140 Lbs. | 280 Lbs. | 150 Degrees/Second |
| Roll Control Travel | Roll Continuous Force | Roll Max Force (For :30 Sec) | Roll Max Speed (Unloaded) |
| ±100 Degrees | 105 Lbs. | 210 Lbs. | 955 Degrees/Second |
Modular Column/Yoke Assembly - 2 Model
| Pitch Control Travel | Pitch Continuous Force | Pitch Max Force (For :30 Sec) | Pitch Max Speed (Unloaded) |
|---|---|---|---|
| ±15 Degrees | 280 Lbs. | 560 Lbs. | 75 Degrees/Second |
| Roll Control Travel | Roll Continuous Force | Roll Max Force (For :30 Sec) | Roll Max Speed (Unloaded) |
| ±100 Degrees | 105 Lbs. | 210 Lbs. | 955 Degrees/Second |
Fill out the form below and we'll automatically send you our full spec sheet on our Modular Column/Yoke Assembly to your e-mail address.

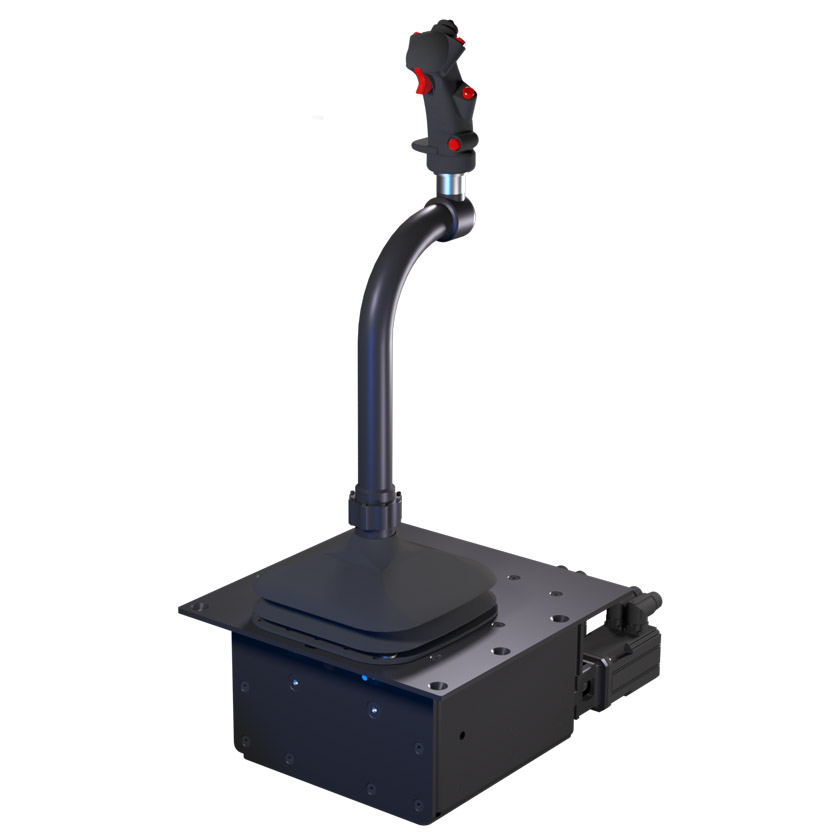

Modular Center Stick Assembly
| PITCH AT PIVOT | |
|---|---|
| Travel | Continuous Speed |
| ±15 (deg) | 510 (deg/s) |
| ROLL AT PIVOT | |
|---|---|
| Travel | Continuous Speed |
| ±15 (deg) | 420 (deg/s) |
| PITCH AT GRIP (24" Above Deck) | |||
|---|---|---|---|
| Continuous Force | Max Force | ||
| 50 (lb) | 100 (lb) | ||
| ROLL AT GRIP (24" Above Deck) | |||
|---|---|---|---|
| Continuous Force | Max Force | ||
| 50 (lb) | 100 (lb) | ||
Fill out the form below and we'll automatically send you our full spec sheet on our Modular Center Stick Assembly to your e-mail address.

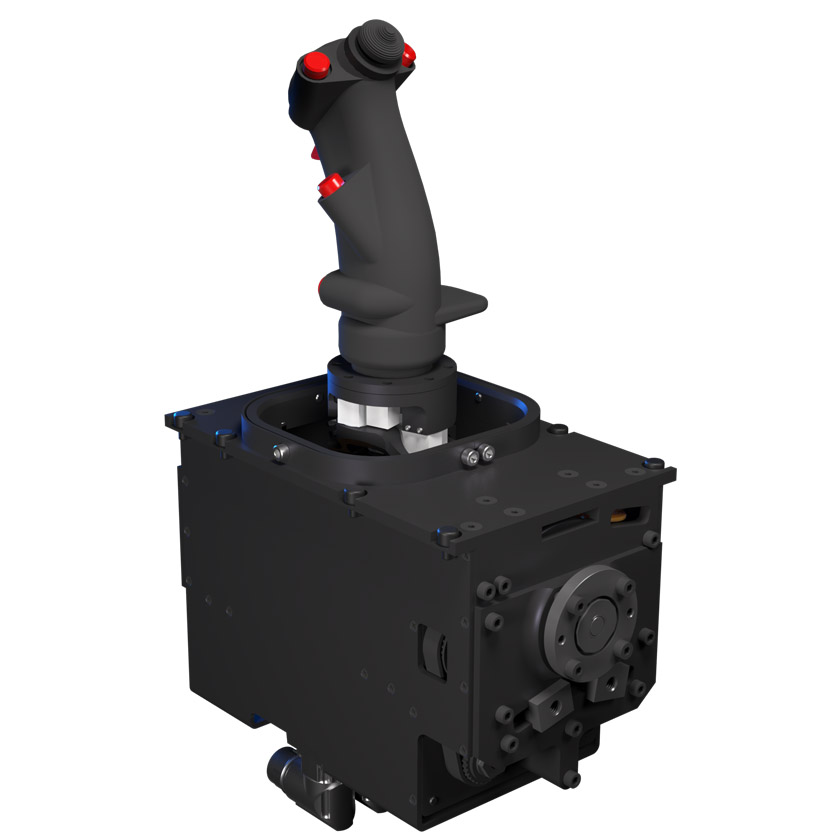

Modular Side Stick Assembly
| Pitch Control Travel | Pitch Continuous Force | Pitch Max Force (For :30 Sec) | Pitch Max Speed (Unloaded) |
|---|---|---|---|
| ±20 Degrees | 25 Lbs. | 50 Lbs. | 376 Degrees/Second |
| Roll Control Travel | Roll Continuous Force | Roll Max Force (For :30 Sec) | Roll Max Speed (Unloaded) |
| ±20 Degrees | 25 Lbs. | 50 Lbs. | 322 Degrees/Second |
Fill out the form below and we'll automatically send you our full spec sheet on our Modular Side Stick Assembly to your e-mail address.

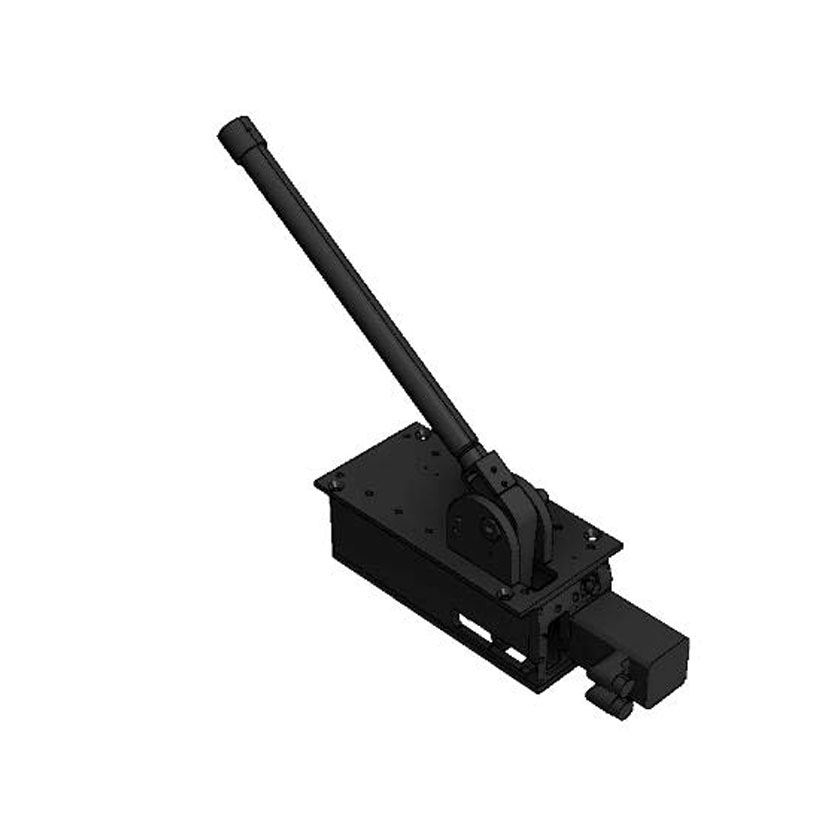

Modular Collective Assembly
| Control Travel Mid Travel is 35° Above Deck |
Continuous Force | Peak Force (lb.) | Speed (No Load, deg./sec.) |
|---|---|---|---|
| ±20 Degrees | 60 Lbs. | 120 Lbs. | 164 Degrees/Second |
Fill out the form below and we'll automatically send you our full spec sheet on our Modular Collective Assembly to your e-mail address.

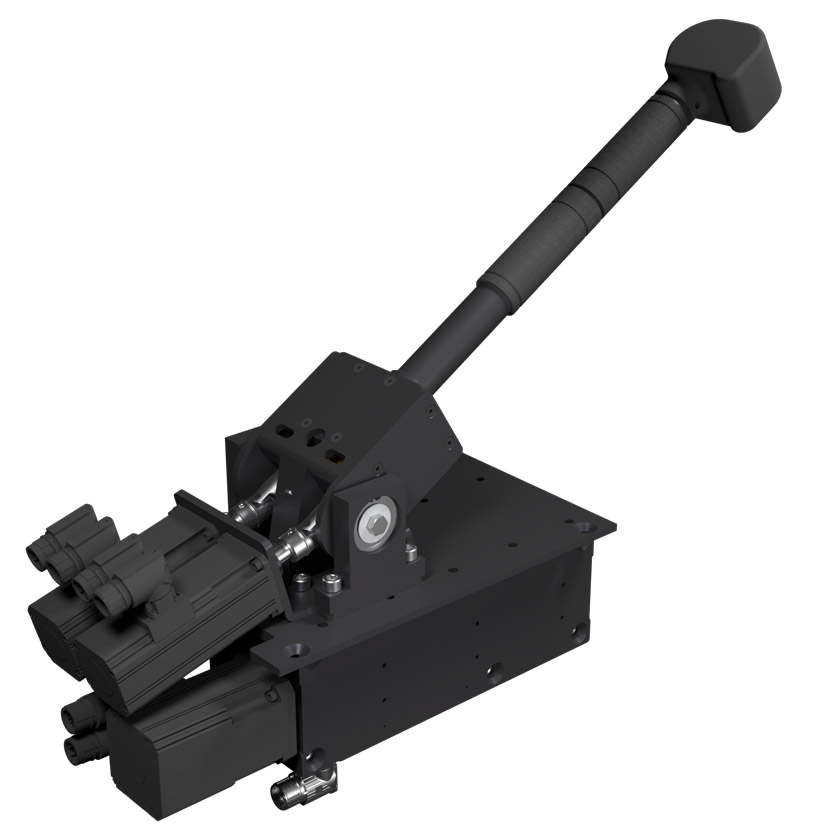

Modular Dual Throttle Collective
| COLL AT PIVOT | |
|---|---|
| Travel | Continuous Speed |
| ±16 (deg) | 179 (deg/s) |
| COLL AT GRIP | ||
|---|---|---|
| Continuous Force | Max Force | Continuous Speed |
| 80 (lb) | 160 (lb) | 67.72 (in/s) |
| THRUST GRIP | |
|---|---|
| Travel | Torque |
| 235 (deg) | 15.00 in-lb |
Fill out the form below and we'll automatically send you our full spec sheet on our Modular Dual Throttle Collective to your e-mail address.

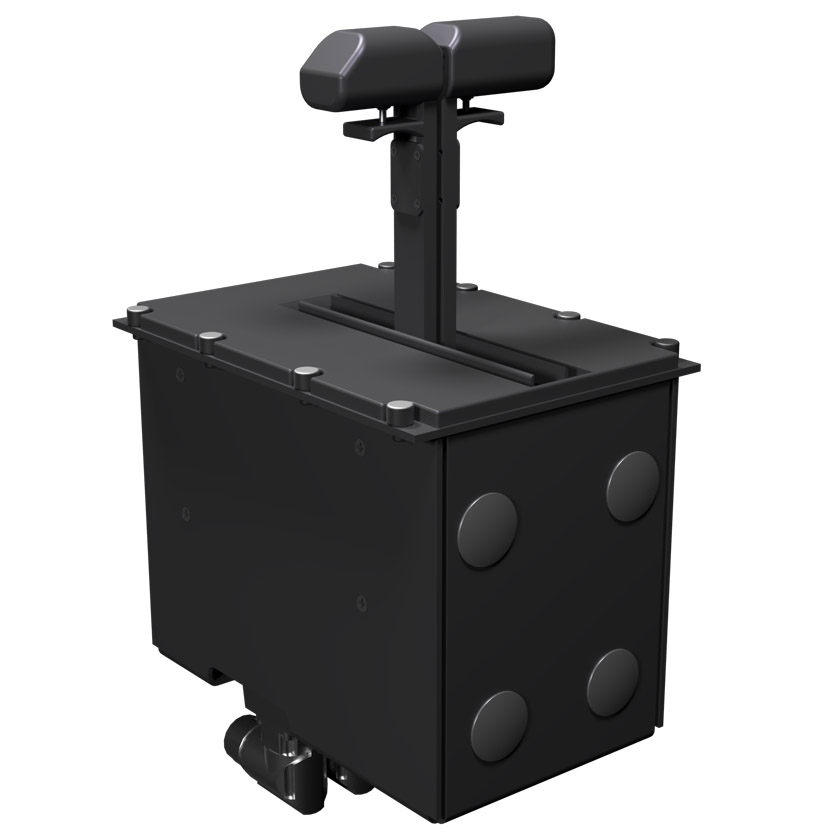

Modular Dual Throttle
| Travel | Continuous Speed | Continuous Force | Max Force |
|---|---|---|---|
| ±35 (deg) | 41 (in/s) | 60 (lb) | 120 (lb) |
Fill out the form below and we'll automatically send you our full spec sheet on our Modular Dual Throttle to your e-mail address.

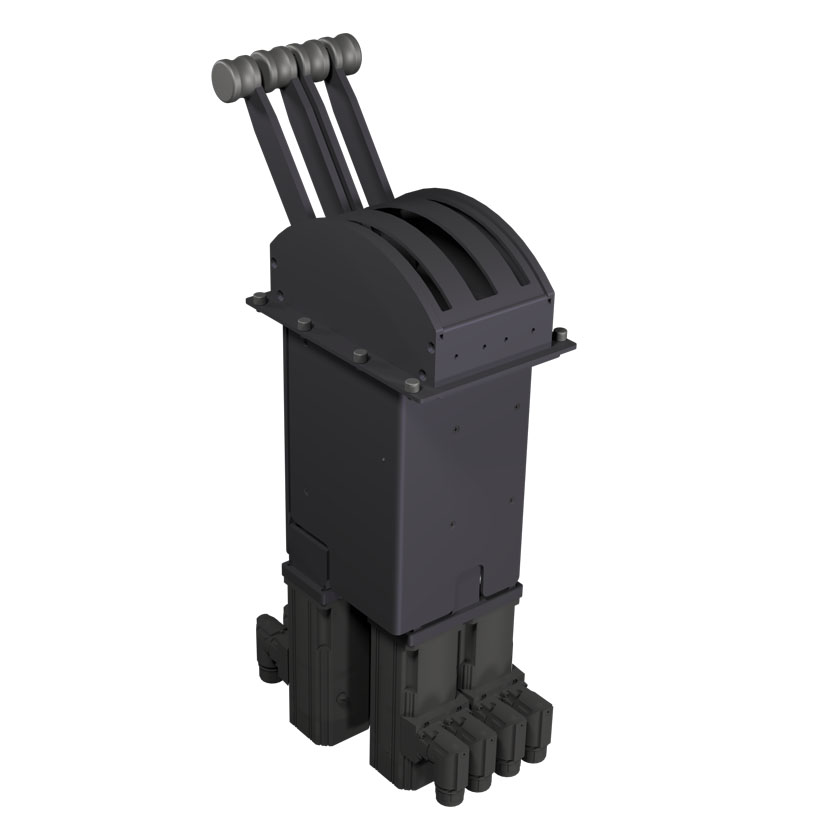

Modular Quad Throttle
| Travel | Continuous Speed | Continuous Force | Max Force |
|---|---|---|---|
| ±35 (deg) | 50 (in/s) | 50 (lb) | 100 (lb) |
Fill out the form below and we'll automatically send you our full spec sheet on our Modular Quad Throttle to your e-mail address.
