MOTION PLATFORMS FOR A WIDE VARIETY OF PAYLOADS AND APPLICATIONS

SCT is an industry leader in the design, development and manufacturing of motion systems for a variety of applications and payloads ranging from 1,600 (726 KG) to 36,000 (16,327 KG) lbs. Each system is driven by a motion application specific line of SCT electric actuators using EtherCAT I/O technology. SCT motion systems are designed to maximize the use of COTS products and support incremental updates to achieve a product life cycle of 20 years.

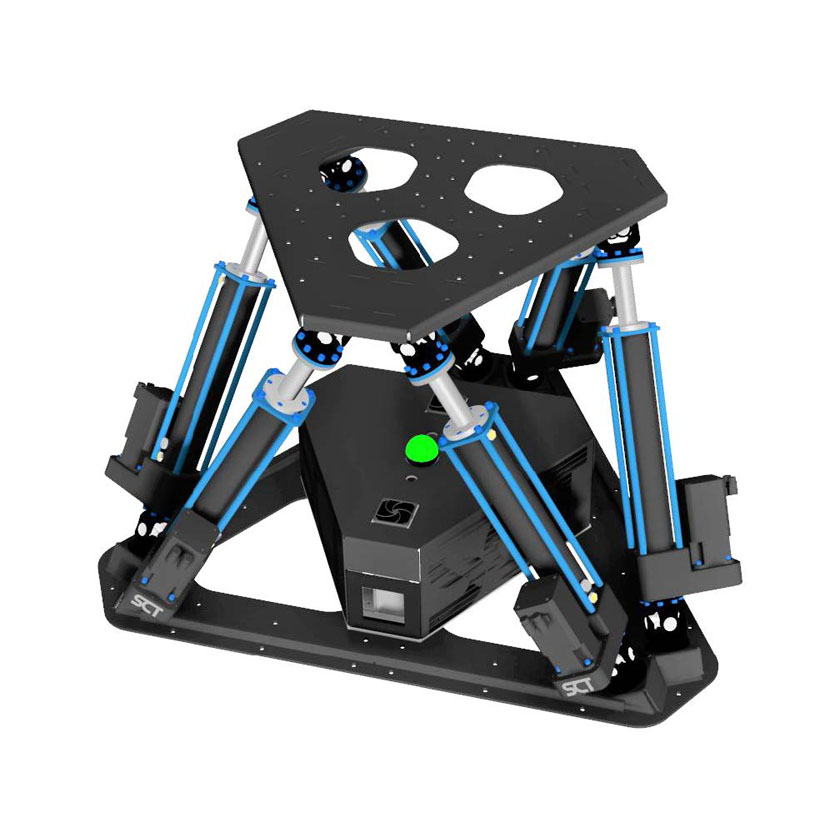

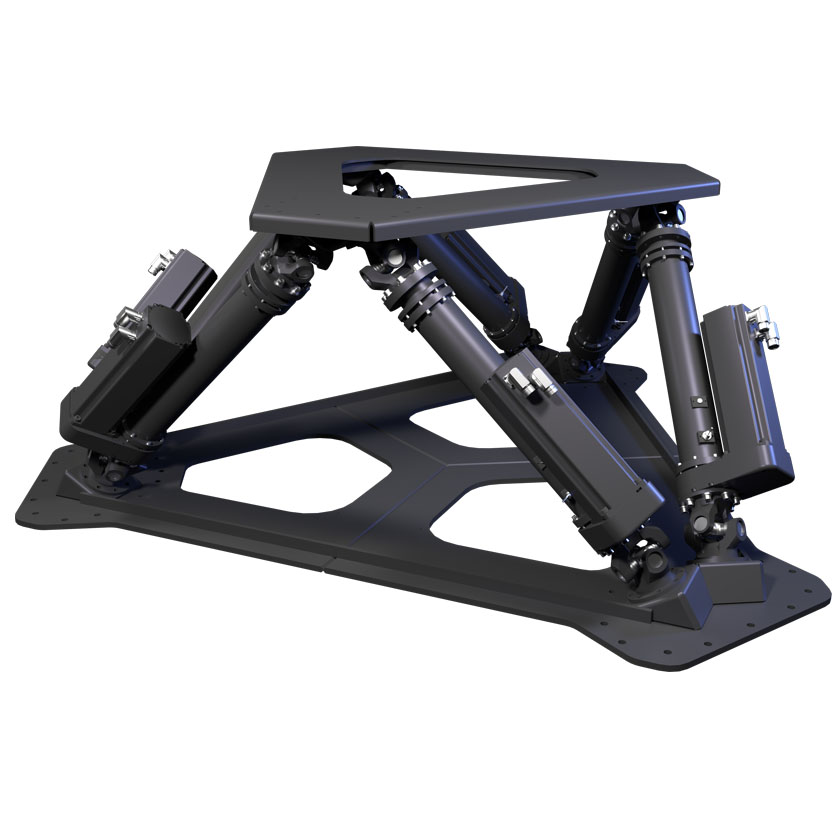

SCT 3000/12 6DOF 1361 KG

Features Excursion Velocity Acceleration
Pitch +/- 21 Degrees +/- 45 d/sec +/- 700 d/sec2
Roll +/- 21 Degrees +/- 45 d/sec +/- 700 d/sec2
Yaw +/- 30 Degrees +/- 45 d/sec +/- 700 d/sec2
Surge +/- 11 Inches +/- 32 in/sec +/- 0.8 Gs
Sway +/- 10 Inches +/- 30 in/sec +/- 0.8 Gs
Heave +/- 6.75 Inches +/- 17 in/sec +/- 0.8 Gs

Fill out the form below and we'll automatically send you our full spec sheet on our SCT 3000/12 6DOF 1361 KG to your e-mail address.

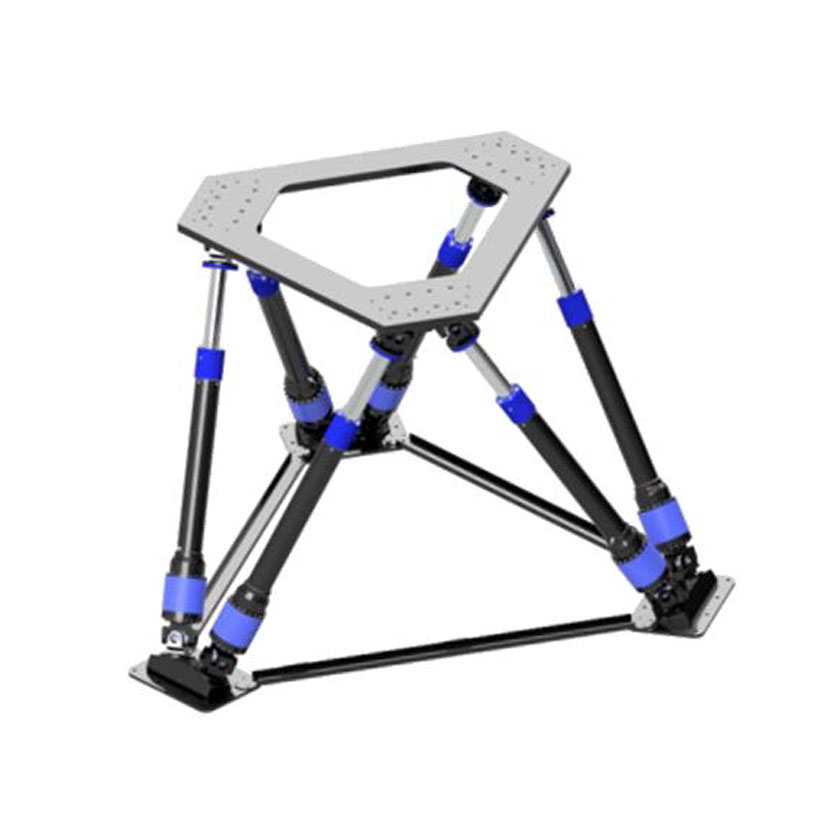

SCT 10000/30 6DOF 4535 KG

Features Excursion Velocity Acceleration
Pitch +/- 20 Degrees +/- 36 d/sec +/- 300 d/sec2
Roll +/- 20 Degrees +/- 36 d/sec +/- 300 d/sec2
Yaw +/- 30 Degrees +/- 41 d/sec +/- 500 d/sec2
Surge +/- 24 Inches +/- 26 in/sec +/- 0.8 Gs
Sway +/- 22 Inches +/- 26 in/sec +/- 0.8 Gs
Heave +/- 15 Inches +/- 20 in/sec +/- 0.8 Gs

Fill out the form below and we'll automatically send you our full spec sheet on our SCT 10000/30 6DOF 4535 KG to your e-mail address.

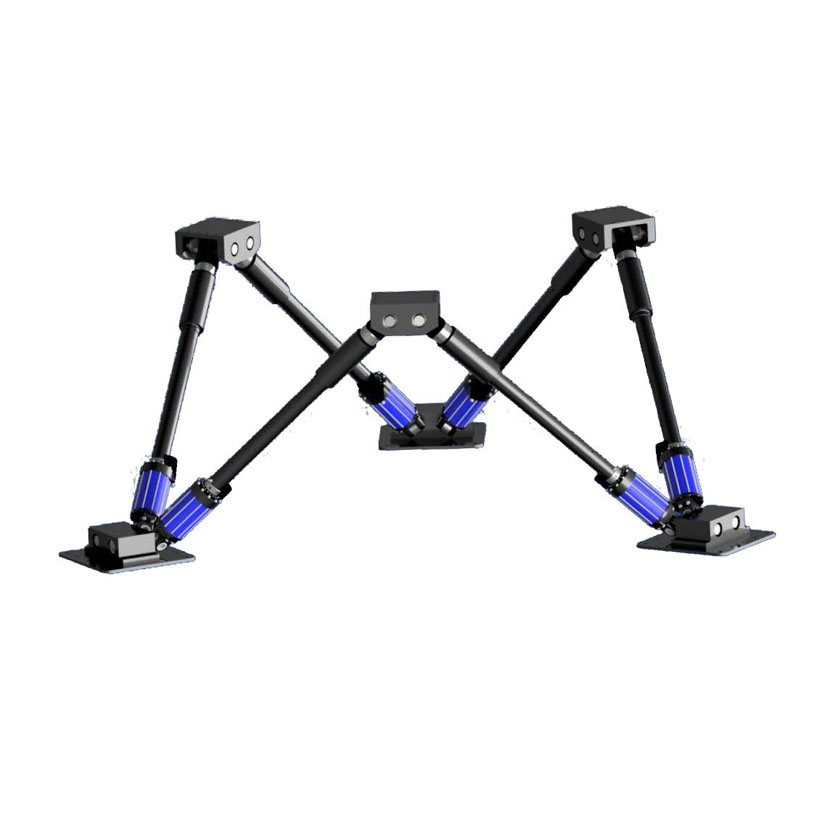

SCT 36000/60 6DOF 16327 KG

Features Excursion Velocity Acceleration
Pitch +/- 27 Degrees +/- 22 d/sec +/- 110 d/sec2
Roll +/- 27 Degrees +/- 22 d/sec +/- 110 d/sec2
Yaw +/- 34 Degrees +/- 22 d/sec +/- 110 d/sec2
Surge +54/-45 Inches +/- 30 in/sec +/- 0.65 Gs
Sway +/- 47 Inches +/- 30 in/sec +/- 0.65 Gs
Heave +/- 34 Inches +/- 26 in/sec +/- 0.85 Gs

Fill out the form below and we'll automatically send you our full spec sheet on our SCT 36000/60 6DOF 16327 KG to your e-mail address.
